Additional information
Size | 100mm |
---|---|
Degree | 88º |
DWVF0120 | DWVF0122 | DWVF0124 | DWVF0126 | DWVF0128 | DWVF0130 | DWVF0138 | DWVF0140 | DWVF00142 | DWVF0144 | DWVF0146
ELBMD150X5MF | ELBMSEW150X15MF | ELBMD150X30MF | ELBMD150X45MF | ELBMD150X88MF | ELBMSEW225X5MF | ELBMSEW225X15MF | ELBMSEW225X22MF | ELBMSEW225X30MF | ELBMD225X45MF | ELBMD225X88/90MF | ELBMSEW300X5MF | ELBMSEW300X15MF | ELBMSEW300X22MF | ELBMSEW300X30MF | ELBMSEW300X45MF | ELBMSEW300X90MF
The Holman Male and Female Plain bend is for sewer and vent use. Connect pipe with solvent cement. Complies with AS/NZS1260.
Degree: 88º | |
Size: 100mm |
Size | 100mm |
---|---|
Degree | 88º |
Code | Description | Bag | Box | |
---|---|---|---|---|
DWVF0120 | 40mm 43º | 10 | 60 | |
DWVF0122 | 40mm 88º | 10 | 60 | |
DWVF0124 | 50mm 43º | 10 | 60 | |
DWVF0126 | 50mm 88º | - | 40 | |
DWVF0128 | 50mm x 40mm 45º | 5 | 50 | |

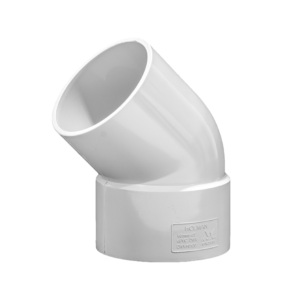

DWVF0130 | 65mm 45º | 10 | 100 | |
DWVF0138 | 100mm 5º | - | 42 | |
DWVF0140 | 100mm 15º | - | 36 | |
DWVF0142 | 100mm 30º | - | 36 | |
DWVF0144 | 100mm 43º | - | 33 | |
DWVF0146 | 100mm 88º | - | 20 | |

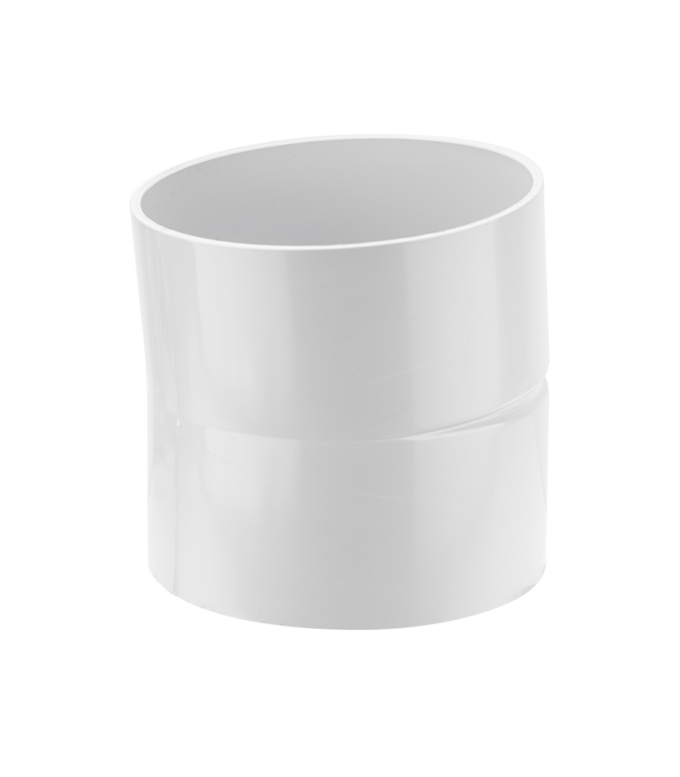

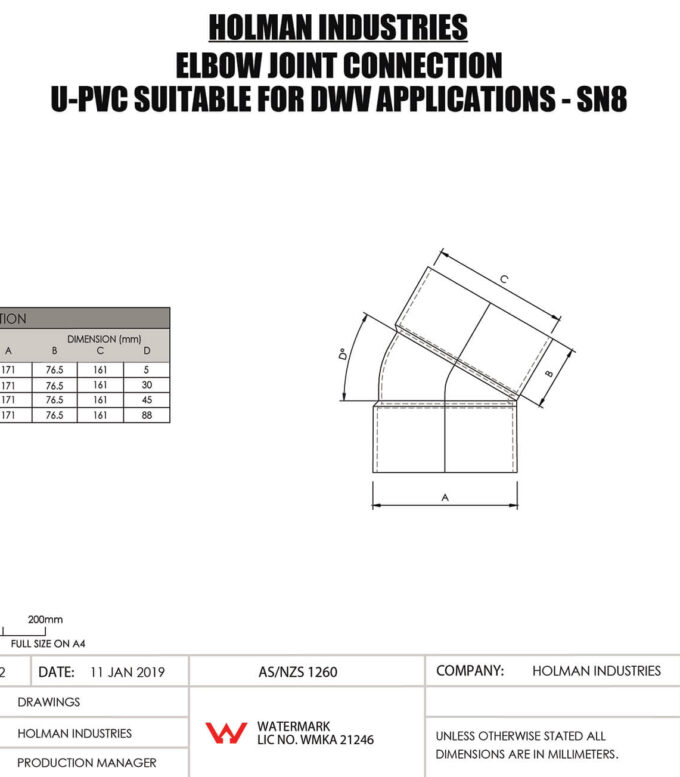

ELBMD150X5MF | 150mm 5º | - | 12 | |
ELBSEW150X15MF | 150mm 15º | - | - | |
ELBMD150X30MF | 150mm 30º | - | 18 | |
ELBMD150X45MF | 150mm 43º | - | 12 | |
ELBMD150X88MF | 150m 88º | - | 8 | |
ELBSEW225X5MF | 225m 5º (F) | - | - | |
ELBMD225X15MF | 225mm 15º (F) | - | - | |
ELBSEW225X22MF | 225mm 22º (F) | - | - | |
ELBSEW225X30MF | 225mm 30º (F) | - | - | |
ELBMD225X45MF | 225mm 45º | - | 4 | |
ELBMD225X88/90MF | 225mm 88º | - | 4 | |
ELBSEW300X5MF | 300mm 5º (F) | - | - | |
ELBSEW300X15MF | 300mm 15º (F) | - | - | |
ELBSEW300X22MF | 300mm 22º (F) | - | - | |
ELBSEW300X30MF | 300mm 30º (F) | - | - | |
ELBSEW300X45MF | 300mm 45º (F) | - | - | |
ELBSEW300X90MF | 300mm 90º (F) | - | - |
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|

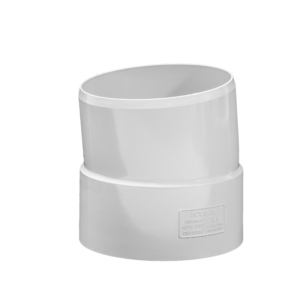

DWVF0138 | 100mm 5° | 5° | 100mm | W:125 H:150 L:150 | 0.206kg |
ELBMD150X5MF | 150mm 5° | 5° | 150mm | – | – |
ELBSEW225X5MF | 225mm 5°(F) | 5° | 225mm | – | – |
ELBSEW300X5 | 300mm 5°(F) | 5° | 300mm | – | – |
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|

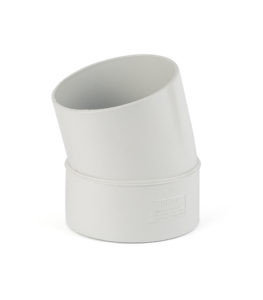

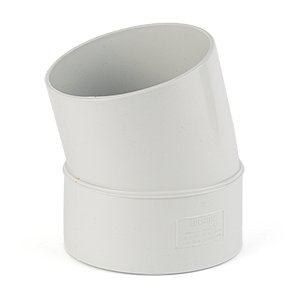

DWVF0140 | 100mm 15° | 15° | 100mm | W:125 H:140 L:140 | 0.180kg |
ELBSEW150X15 | 150mm 15° | 15° | 150mm | – | – |
DWVF0072 | 100mm 15° | 15° | 100mm | W:125 H:150 L:150 | 0.24kg |
ELBSEW225X15MF | 225mm 15°(F) | 15° | 225mm | – | – |
ELBSEW300X15MF | 300mm 15°(F) | 15° | 300mm | – | – |
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|
ELBSEW225X22MF | 225mm 22° | 22° | 225mm | – | – |
ELBSEW300X22MF | 300mm 22° | 22° | 300mm | – | – |
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|

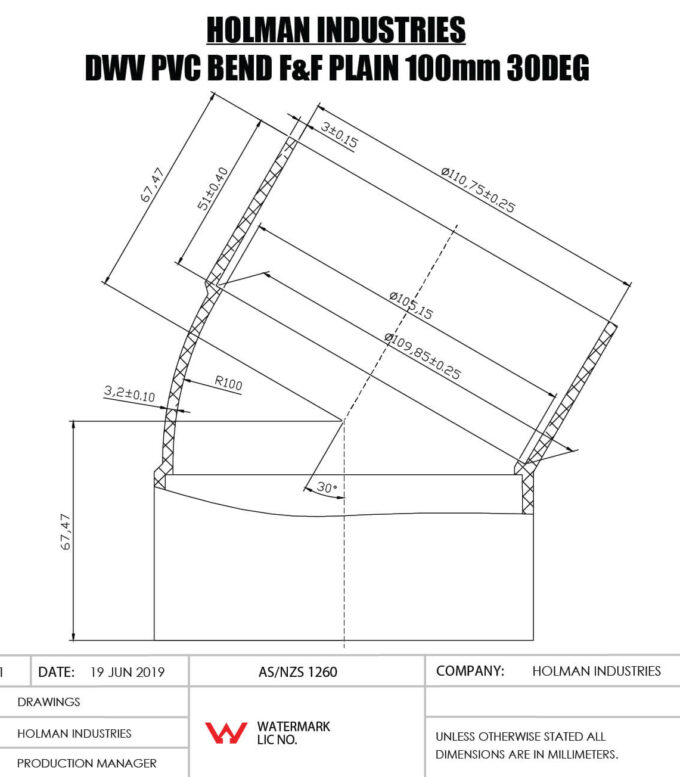

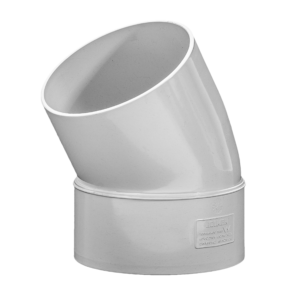

DWVF0142 | 100mm 30° | 30° | 100mm | W:125 H:140 L:140 | 0.26kg |
ELBMD150x30MF | 150mm 30° | 30° | 150mm | – | – |
ELBSEW225X30 | 225mm 30° | 30° | 225mm | – | – |
ELBSEW300X30 | 300mm 30° | 30° | 300mm | – | – |
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|

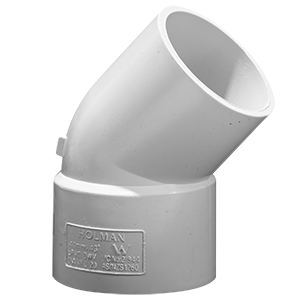

DWVF0120 | 40mm 43° | 43° | 40mm | W:50 H:85 L:85 | 0.433kg |

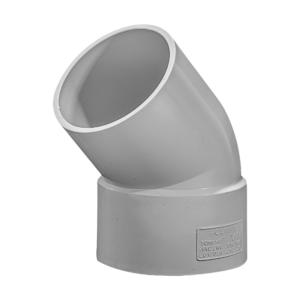

DWVF0124 | 50mm 43° | 43° | 50mm | W:60 H:100 L:100 | 0.790kg |

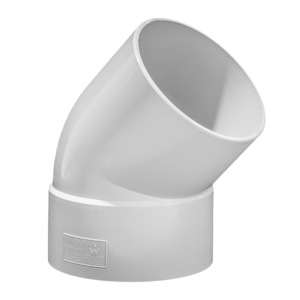

DWVF0144 | 100mm 43° | 43° | 100mm | W:120 H:140 L:140 | 0.276kg |
ELBMD150X43MF | 150mm 43° | 43° | 150mm | – | – |
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|

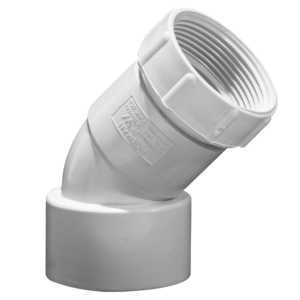

DWVF0128 | 50mm x 40mm 45° | 45° | 50mm x 40mm | W:56 H:85 L:85 | 0.550kg |
ELBMD225X45MF | 225mm 45° | 45° | 225mm | – | – |
ELBSEW300X45MF | 300mm 45° | 45° | 300mm | – | – |
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|

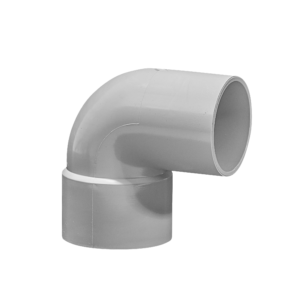

DWVF0122 | 40mm 88° | 88° | 40mm | W:44 H:80 L:44 | 0.06kg |
DWVF0126 | 50mm 88° | 88° | 50mm | W:60 H:100 L:100 | 0.09kg |

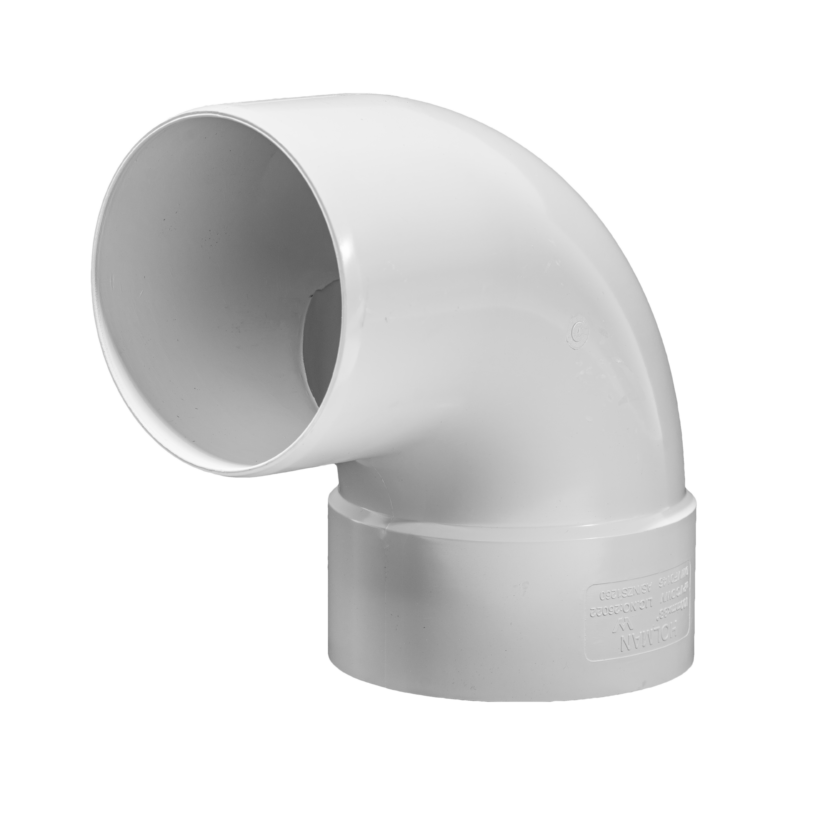

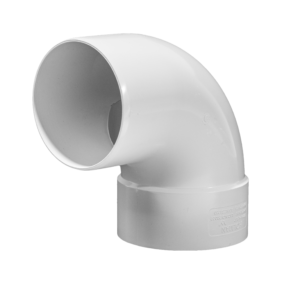

DWVF0146 | 100mm 88° | 88° | 100mm | W:62 H:93 L:93 | 0.45kg |
ELBMD150X88MF | 150mm 88° | 88° | 150mm | – | – |
ELBMD225X88/90MF | 225mm 88° | 88° | 225mm | – | – |
Code | Description | Angle | Size | Dimensions | Weight |
---|---|---|---|---|---|
ELBSEW300X90MF | 300mm 90° | 90° | 300mm | – | – |
