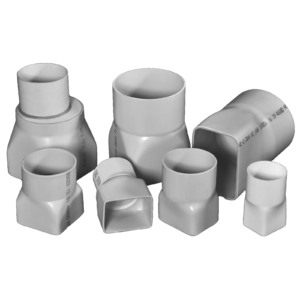

STORM PVC ADAPTOR DOWNPIPE – 150×100×100mm, SOCKETED
The Holman PVC Downpipe Adaptor is for use on Stormwater pipes. Holman Stormwater fittings are made from quality recycled PVC and are used for stormwater and rainwater drainage. Connect pipe with solvent cement. Complies with AS/NZS1254 – AMI 70007.
| Size: |
| Code | Description | Bag | Box | |
|---|---|---|---|---|
 | SWF0035 | 95mm x 45mm x 90mm | - | 90 |
 | SWF0040 | 100mm x 50mm x 75mm | 10 | 120 |
 | SWF0050 | 100mm x 50mm x 90mm | - | 110 |
 | SWF0070 | 100mm x 80mm x 90mm | - | 80 |
 | SWF0100 | Adaptor Round 90mm x 50mm | 5 | 160 |
 | DPASW4X2X100 | 100mm x 50mm x 100mm / Socketed | - | - |
 | DPASW4X3X100 | 100mm x 75mm x 100mm / Socketed | - | - |
| DPASW4X4X100 | 100mm x 100mm x 100mm / Socketed | - | - |
| DPASW6X4X100 | 150mm x 100mm x 100mm / Socketed | - | - |
| DPASW6X4X150 | 150mm x 100mm x 150mm / Socketed | - | - |
| DPASW6X6X100 | 150mm x 150mm x 100mm / Socketed | - | - |
| DPASW6X6X150 | 150mm x 150mm x 150mm / Socketed | - | - |
| DPASW200X200X150 | 200mm x 200mm x 150mm / Socketed | - | - |
Tech Sheet 90mm
Tech Specs

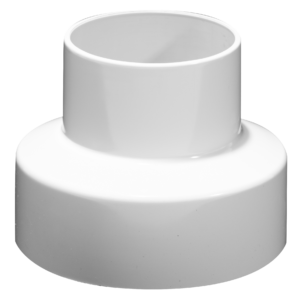

- Model Name: Storm PVC Adaptor 90mm x 50mm Round
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| SWF0100 | 90mm x 50mm Round | – | 90mm x 50mm | W:100 H:74 L:100 | 0.07kg |
Tech Sheet 95mm
Tech Specs

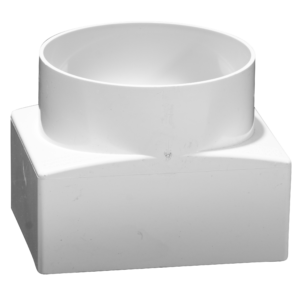

- Model Name: Storm PVC Adaptor Down Pipe 95mm x 45mm x 90mm
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| SWF0035 | 95mm x 45mm x 90mm | – | 95mm x 45mm x 90mm | – | 0.1kg |
Tech Sheet 100mm
Tech Specs

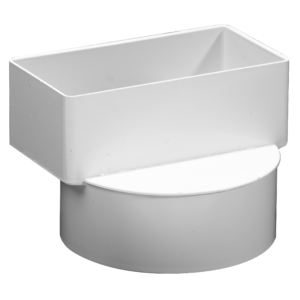

- Model Name: Storm PVC Adaptor Down Pipe 100mm x 50mm x 75mm
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| SWF0040 | 100mm x 50mm x 75mm | – | 100mm x 50mm x 75mm | W:109 H:87 L:80 | 0.11kg |
| SWF0050 | 100mm x 50mm x 90mm | – | 100mm x 50mm x 90mm | W:110 H:95 L:90 | 0.08kg |
| SWF0070 | 100mm x 80mm x 90mm | – | 100mm x 80mm x 90mm | W:90 H:90 L:85 | 0.12kg |
| DPASW4X2X100 | 100mm x 50mm x 100mm / Socketed | – | 100mm x 50mm x 100mm | – | – |
| DPASW4X3X100 | 100mm x 75mm x 100mm / Socketed | – | 100mm x 75mm x 100mm | – | – |
| DPASW4X4X100 | 100mm x 100mm x 100mm / Socketed | – | 100mm x 100mm x 100mm | – | – |
Tech Sheet 150mm
Tech Specs

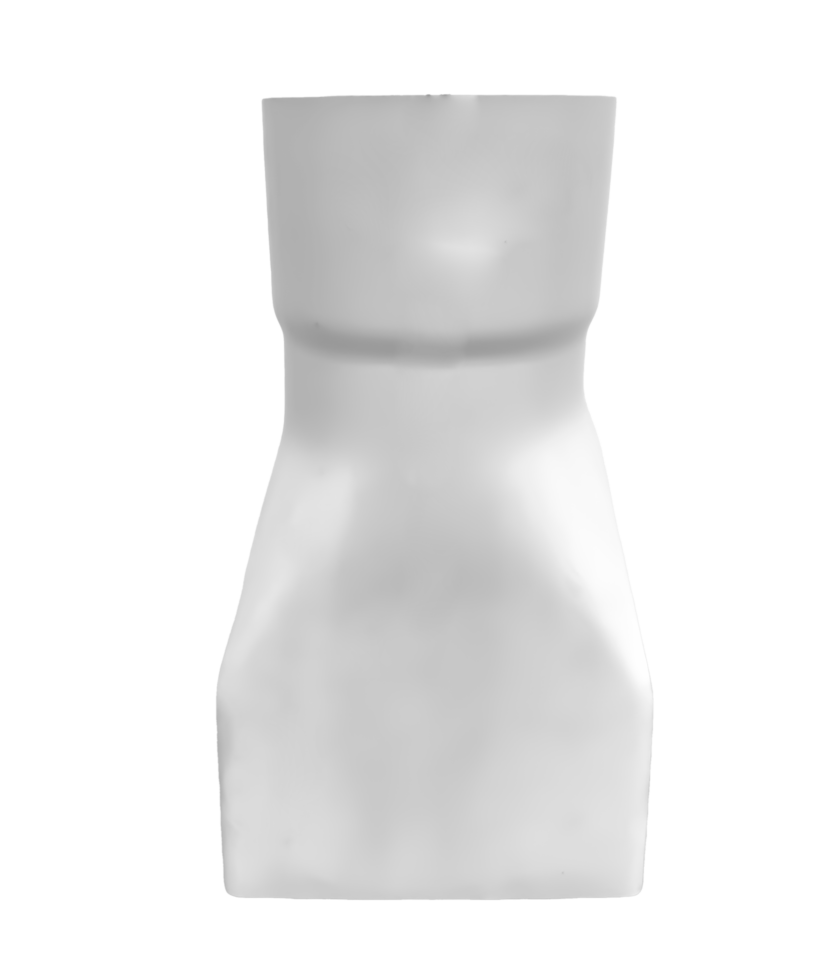

- Model Name: Storm Fabfit DPA 150mm x 100mm x 100mm / Socketed
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| DPASW6X4X100 | 150mm x 100mm x 100mm / Socketed | – | 150mmx100mmx100mm | – | – |
| DPASW6X4X150 | 150mm x 100mm x 150mm / Socketed | – | 150mm x 100mm x 150mm | – | – |
| DPASW6X6X100 | 150mm x 150mm x 100mm / Socketed | – | 150mm x 150mm x 100mm | – | – |
| DPASW6X6X150 | 150mm x 150mm x 150mm / Socketed | – | 150mm x 150mm x 150mm | – | – |
Tech Sheet 200mm
Tech Specs
- Model Name: Storm Fabfit DPA 200mm x 200mm x 150mm / Socketed
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS1254 – AMI 70007
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| DPASW200X200X150 / Socketed | 200mm x 200mm x 150mm | – | 200mm x 200mm x 150mm | – | – |
